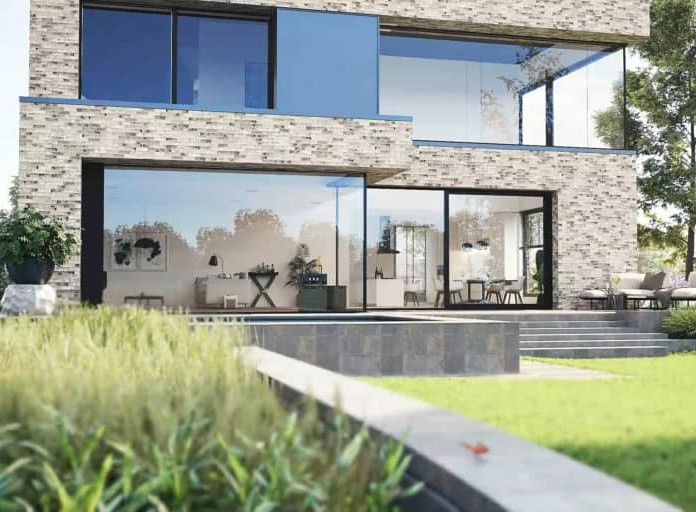

Reynaers Masterpatio aluminum lift and slide doors
Economical HS sliding door system
from 3120 USD Price for a reference size 8 ft x 8 ft, scheme A, double-glazed
Material
aluminum
Brand
Reynaers
Class
lift and slide doors
U-Factor
0.23 Btu/h·ft2·F
Warranty
30/42 months
Production time
from 5 weeks

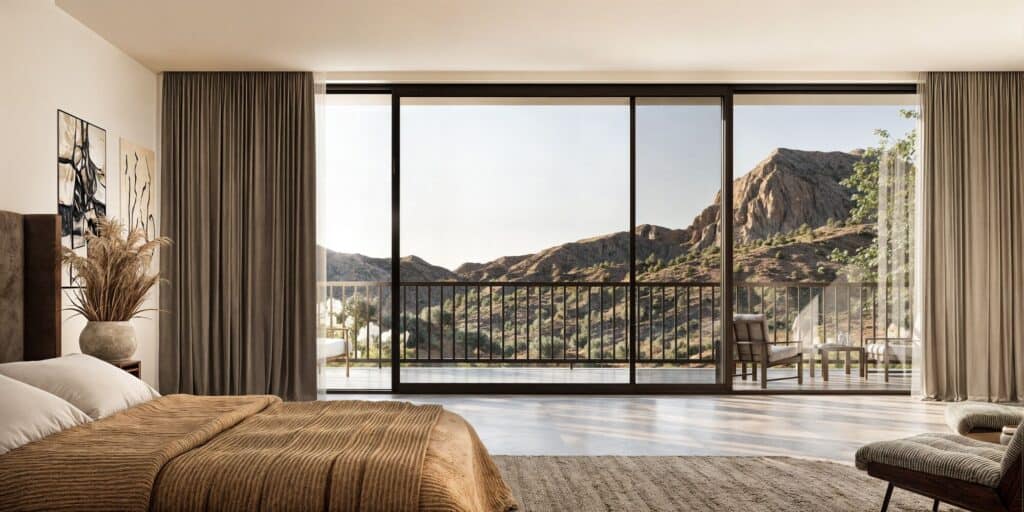

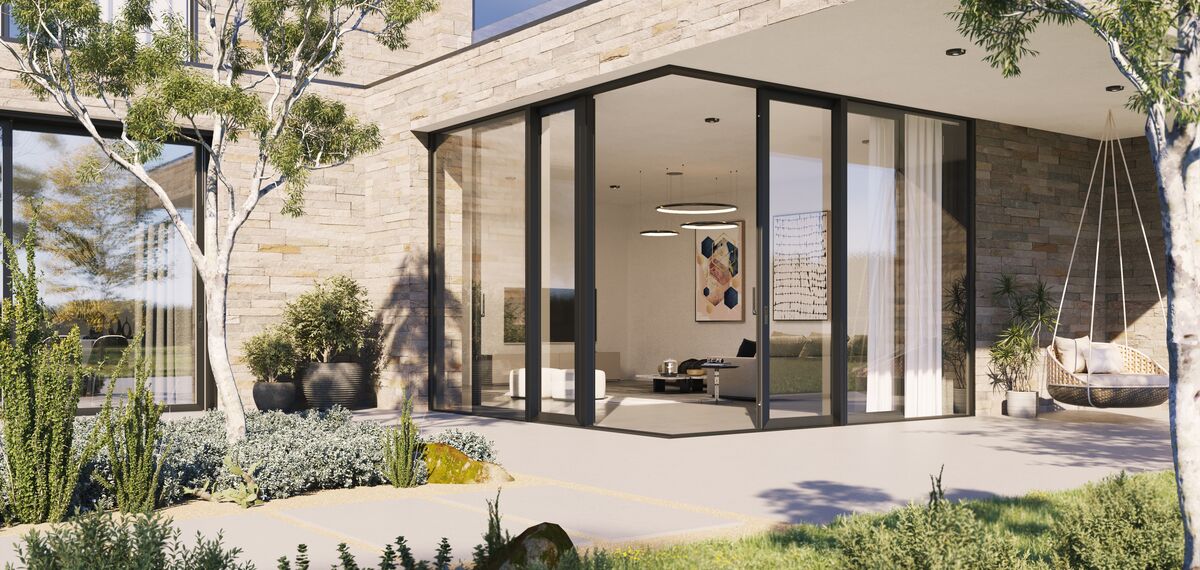

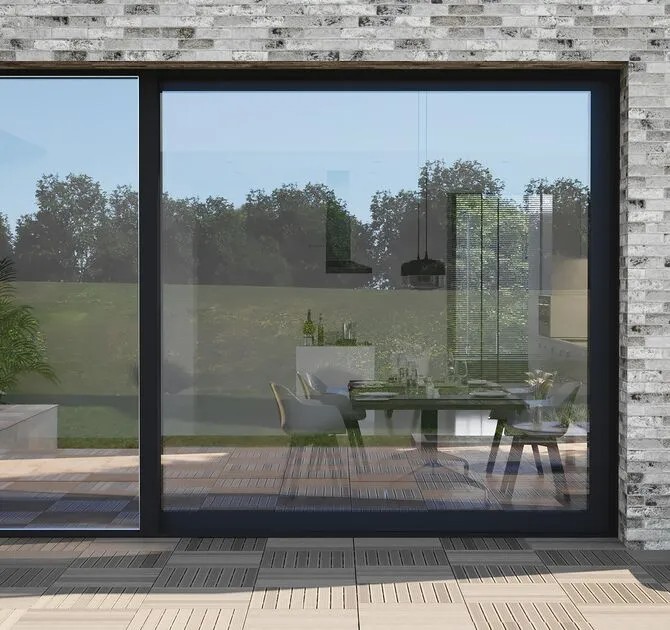

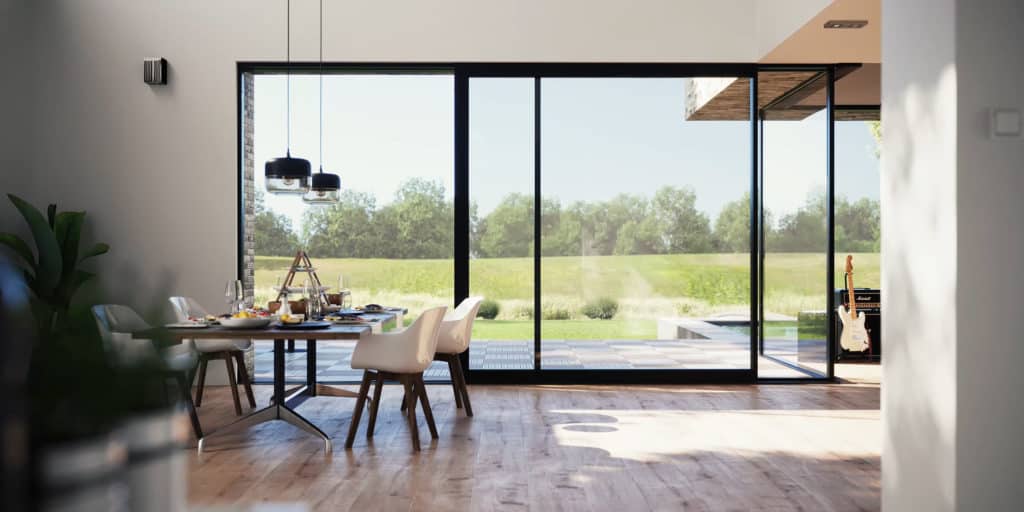

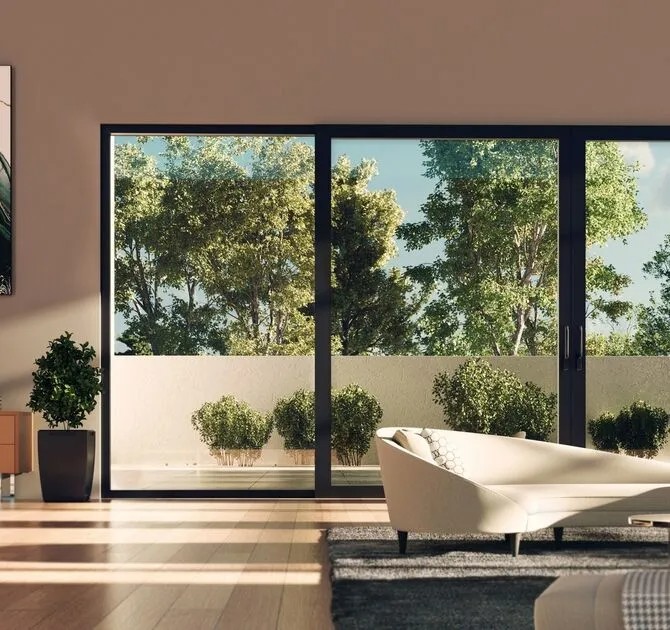

Meet Reynaers Masterpatio aluminum sliding doors
- available variant: fix in the frame (monorail)
- has a system drainage gutter
- good thermal performance, glazing up to 2.44 in possible
technical specification
Material aluminum
Brand Reynaers
Class sliding systems
sash depth 3.03 in
U-Factor 0.23 Btu/h·ft2·F
Ug The parameter specified applies to the reference window 0.09 Btu/h·ft2·F
Max glazing 2.44 in
frame depth 7.09 in
min. sash+frame height 5.51 in
max sash height 8 ft 2.43 in
threshold 60/1.81 in
width of center post 1.97 in
